How to Configure keyVaultReferenceIdentity in Azure App Service?

Overview

This guide shows you how to fix a critical Azure App Service configuration issue where the keyVaultReferenceIdentity property is hidden from the Azure Portal but required for accessing Key Vault secrets.

Symptoms

Developers encountering this issue typically observe:

• Key Vault references returning empty values instead of secret content
• Configuration entries showing “Not Resolved” error messages
• Application settings failing to fetch secret values from Key Vault
• Authentication errors when attempting to access protected secrets
• 401/403 errors from App Service attempting to validate Key Vault access

Why This Happens

Azure App Service uses Managed Identity authentication to access Key Vault secrets, but the keyVaultReferenceIdentity property is deliberately hidden from standard Azure Portal interfaces. This property only exists at the Azure Resource Manager (ARM) level, making it invisible through the typical Azure management UI.

Technical Architecture

App Service → Managed Identity → Azure AD → Key Vault Access Policy → Secret Store

1. App Service attempts to authenticate using its assigned Managed Identity
2. Azure needs explicit permission through the keyVaultReferenceIdentity property
3. This permission exists only in the underlying ARM configuration
4. Without this configuration, the authentication chain breaks
5. Key Vault references resolve to empty values or error messages

Why Portal Visibility is Limited

Microsoft implements this design choice for several reasons:

• Security: Keeps identity-to-Key Vault mappings out of standard management interfaces
• Simplicity: Prevents accidental misconfigurations that could cause security issues
• Audit Trail: Ensures all identity configurations go through proper change management
• Resource Provider: Some properties require ARM-level configuration for consistency

Prerequisites

Required Azure Resources

• Azure Subscription: Active subscription with appropriate permissions
• Azure App Service: Existing Linux or Windows App Service
• User-Assigned Managed Identity: Pre-created Managed Identity for the App Service
• Azure Key Vault: Key Vault with access policies configured for the Managed Identity

Required Tools and Permissions

• Azure CLI: Version 2.0+ installed locally
• PowerShell: Azure Az module installed
• RBAC Permissions:
  • Contributor or Owner role on App Service resource
  • Reader role minimum for resource listing
  • Key Vault access policies granting Get Secret permissions

Environment Setup

# Install required Azure CLI extensions
az extension add --name keyvault

# Verify Azure CLI installation
az --version

# Login to Azure (if not already authenticated)
az login

Step-by-Step Solution Guide

Step 1: Prepare Your PowerShell Environment

Initialize your PowerShell session and clear any cached authentication tokens:

# Connect to Azure (if not already connected)
Connect-AzAccount

# Clear any cached authentication tokens
Clear-AzTokenCache

# Verify current authentication status
Get-AzContext

Step 2: Target the Correct Azure Subscription

Set the correct subscription context for your infrastructure:

# List all accessible subscriptions
Get-AzSubscription | Select-Object Name, Id, State

# Set your target subscription
Set-AzContext -SubscriptionId "YOUR-SUBSCRIPTION-ID"

Step 3: Execute the ARM Fix Script

Apply the required KeyVault Reference Identity configuration:

# =========================================================================
# FIX: App Service KeyVault Reference Identity Configuration Script
# =========================================================================

# 1. Configure your deployment variables
$subscriptionId = "YOUR-SUBSCRIPTION-ID"
$resourceGroup  = "your-resource-group-name"
$identityName   = "your-managed-identity-name"
$appName        = "your-app-service-name"

# 2. Construct the User-Assigned Identity Resource URL
$identityUrl = "/subscriptions/$subscriptionId/resourceGroups/$resourceGroup/providers/Microsoft.ManagedIdentity/userAssignedIdentities/$identityName"

# 3. Retrieve the App Service's resource ID
$appUrl = Get-AzWebApp -ResourceGroupName $resourceGroup -Name $appName | Select-Object -ExpandProperty Id

# 4. Prepare the ARM PATCH request payload
$uriPath = "{0}?api-version=2021-01-01" -f $appUrl
$payload = @{
    properties = @{
        keyVaultReferenceIdentity = $identityUrl
    }
} | ConvertTo-Json -Depth 3

# 5. Execute the API update request
$response = Invoke-AzRestMethod -Method PATCH -Path $uriPath -Payload $payload

# 6. Verify successful execution
$response.Content | ConvertFrom-Json

Step 4: Complete Verification Process

After script execution, complete these validation steps:

Restart App Service

• Azure Portal: Navigate to App Service → Overview → Restart button
• PowerShell: Restart-AzWebApp -ResourceGroupName $resourceGroup -Name $appName
• Purpose: Force reload of new identity configuration

Validate Application Settings

1. Access your App Service in Azure Portal
2. Navigate to Settings → Configuration → Application Settings
3. Locate Key Vault reference entries

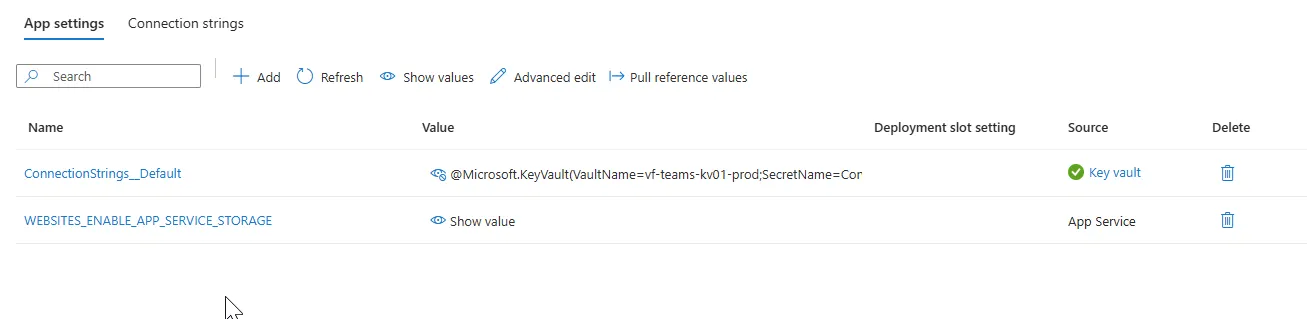

4. Confirm green checkmarks (✅) indicate successful resolution
5. Verify secrets display values like @Microsoft.KeyVault(VaultName={your-key-vault-name},SecretName={your-secret-name})

Test Secret Access

1. Check application logs for resolution status
2. Verify actual secret values are accessible
3. Confirm application functionality with Key Vault integration

Success Checklist

• User-Assigned Managed Identity assigned to App Service
• PowerShell script executed without errors
• App Service restarted successfully
• Green checkmarks visible in Application Settings
• Secret values properly resolved
• Application functions normally

Common Issues and Troubleshooting

Issue: “Not Resolved” Errors Persist

Root Cause: User-Assigned Managed Identity not attached to App Service

Solution: Verify identity assignment in Azure Portal:

1. Open your App Service in Azure Portal
2. Navigate to Identity → User assigned → Assigned identities
3. Confirm your Managed Identity is listed and enabled

Issue: Permission Denied

Root Cause: Insufficient RBAC permissions

Solution: Grant required permissions:

• Navigate to your App Service → Access control (IAM)
• Add Contributor role for comprehensive permissions
• Alternative: Grant specific Microsoft.Web/sites/write permission

Issue: Cross-Subscription Access

Root Cause: Key Vault, Managed Identity, and App Service in different subscriptions

Solution: Ensure all resources in same subscription:

• Deploy all resources to identical subscription
• Verify Key Vault access policies allow Managed Identity from current subscription
• Use cross-tenant access if working across subscriptions

Security Considerations

Required RBAC Permissions

The script requires these specific Azure permissions:

Permission	Required For	Description
Microsoft.Web/sites/read	Get-AzWebApp	Read App Service properties
Microsoft.Web/sites/write	PATCH operation	Update App Service configuration
Microsoft.ManagedIdentity/userAssignedIdentities/read	Identity reference	Read Managed Identity details

Security Best Practices

1. Principle of Least Privilege: Use Contributor role instead of Owner when possible
2. Identity Lifecycle Management: Regularly review and rotate Managed Identity access
3. Audit Compliance: Enable diagnostic settings for tracking configuration changes
4. Access Policy Configuration: Configure Key Vault access policies with specific permissions
5. Secret Rotation: Implement automated Key Vault secret rotation policies

Alternative Implementation Methods

Azure CLI Solution

az webapp update --resource-group your-resource-group \
  --name your-app-name \
  --set properties.keyVaultReferenceIdentity="/subscriptions/YOUR-SUBSCRIPTION-ID/resourceGroups/your-resource-group/providers/Microsoft.ManagedIdentity/userAssignedIdentities/your-identity-name"

# Verify the update
az webapp show --resource-group your-resource-group --name your-app-name --query properties.keyVaultReferenceIdentity

Infrastructure as Code (Bicep)

@description('App Service name')
param appServiceName string

@description('Resource group name')
param resourceGroupName string

@description('Location for all resources')
param location string

@description('User-Assigned Managed Identity ID')
param keyVaultReferenceIdentityId string

resource appService 'Microsoft.Web/sites@2021-01-01' = {
  name: appServiceName
  location: location
  resourceGroupName: resourceGroupName
  kind: 'linux'
  properties: {
    serverFarmId: appServicePlanId
    keyVaultReferenceIdentity: keyVaultReferenceIdentityId
  }
}

Infrastructure as Code (Terraform)

resource "azurerm_app_service" "example" {
  name                = "your-app-name"
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name
  app_service_plan_id = azurerm_app_service_plan.example.id
  kind                = "linux"

  site_config {
    min_tls_version = "1.2"
  }

  identity {
    type         = "UserAssigned"
    identity_ids = [azurerm_user_assigned_identity.example.id]
  }

  lifecycle {
    ignore_changes = all
  }
}

resource "azurerm_key_vault" "example" {
  name                     = "your-keyvault-name"
  location                 = azurerm_resource_group.example.location
  resource_group_name      = azurerm_resource_group.example.name
  tenant_id               = data.azurerm_client_config.current.tenant_id
  sku_name                 = "standard"
  enabled_for_template_deployment = true

  access_policy {
    tenant_id = azurerm_app_service.example.identity.0.tenant_id
    object_id = azurerm_app_service.example.identity.0.principal_id
    secret_permissions = ["get", "list"]
  }
}

Technical Limitations and Considerations

Current Limitations

1. Portal Invisibility: The keyVaultReferenceIdentity property cannot be managed through Azure Portal
2. API Version Dependency: Uses ARM API version 2021-01-01
3. Resource Provider Constraints: Requires Microsoft.Web/sites resource provider availability
4. Manual Configuration: Requires PowerShell or CLI interaction for setup

Performance Impact

• App Service Restart: Required for configuration changes to take effect
• Authentication Overhead: Additional identity validation adds minimal latency
• Resource Consumption: No significant performance impact on secret retrieval

Common Implementation Mistakes

Mistake 1: Premature Script Execution

Problem: Running configuration script before identity assignment Solution: Always assign Managed Identity first, then execute PowerShell script

Mistake 2: Incorrect Subscription Context

Problem: Script running in wrong Azure subscription Solution: Verify subscription context with Get-AzContext before running

Mistake 3: Incomplete Identity URLs

Problem: Missing subscription ID or resource group in identity URL Solution: Ensure complete resource URL construction in script

SEO Optimization Keywords

• Azure App Service KeyVault Reference Identity
• Azure Key Vault access with App Service
• Azure Managed Identity for App Service
• Azure Key Vault references configuration
• Azure App Service secret management
• Azure KeyVault integration with App Service
• Azure Resource Manager ARM configuration
• Azure App Service Key Vault fix
• Azure Web Apps KeyVault identity
• Azure App Service Managed Identity configuration

Related Documentation

• Use Key Vault references as app settings in Azure App Service
• Site.KeyVaultReferenceIdentity Property
• User-Assigned Managed Identity Overview
• Bicep KeyVaultReferenceIdentity in Function App
• Azure App Service Key Vault Reference: User Assigned Managed Identity

Quick Reference Commands

PowerShell Commands

# Check current subscription context
Get-AzContext

# List all available subscriptions
Get-AzSubscription | Select-Object Name, Id, State

# Set subscription context
Set-AzContext -SubscriptionId "your-subscription-id"

# Retrieve App Service information
Get-AzWebApp -ResourceGroupName "your-rg" -Name "your-app-name"

# Restart App Service to apply changes
Restart-AzWebApp -ResourceGroupName "your-rg" -Name "your-app-name"

# Get diagnostic logs
Get-AzWebAppLog -ResourceGroupName "your-rg" -Name "your-app-name"

Verification Commands

# Verify KeyVaultReferenceIdentity configuration
Get-AzWebApp -ResourceGroupName "your-rg" -Name "your-app-name" | Select-Object -ExpandProperty KeyVaultReferenceIdentity

# Check App Service identity status
Get-AzWebApp -ResourceGroupName "your-rg" -Name "your-app-name" | Select-Object -ExpandProperty Identity

Success Metrics

Track these indicators to confirm successful implementation:

• Configuration Status: Green checkmarks in Application Settings
• Secret Resolution: Keys display @Microsoft.KeyVault(...) format
• Authentication Success: Application logs show successful secret retrieval
• Performance: No increased latency in secret access operations
• Security: Proper RBAC permissions and access policies in place

Conclusion

This comprehensive guide resolves Azure App Service KeyVault Reference Identity configuration issues by addressing the hidden keyVaultReferenceIdentity property problem. The solution enables proper authentication between Azure App Service and Azure Key Vault through Managed Identity integration.

By following this step-by-step approach, developers can successfully:

• Configure KeyVault Reference Identity using PowerShell
• Verify secret resolution in application settings
• Implement proper security and RBAC permissions
• Use alternative methods like Azure CLI or infrastructure as code

The hidden property may be invisible in the Azure Portal, but with this technical approach, developers can overcome this architectural limitation and maintain secure, compliant secret management for their Azure applications.

For ongoing maintenance, remember to review identity assignments quarterly, monitor configuration changes, and implement automated secret rotation policies to ensure continued security and compliance.

---

This article covers advanced Azure administration concepts. Ensure you have proper permissions and understand the implications before making changes to production environments.
